Event-Based Vision: Revolutionizing C-UAS Applications

Discover how event-based vision is transforming counter-UAS applications. Learn about its advantages over traditional image cameras, including reduced latency, enhanced dynamic range, and minimal d...

4/7/20261 min read

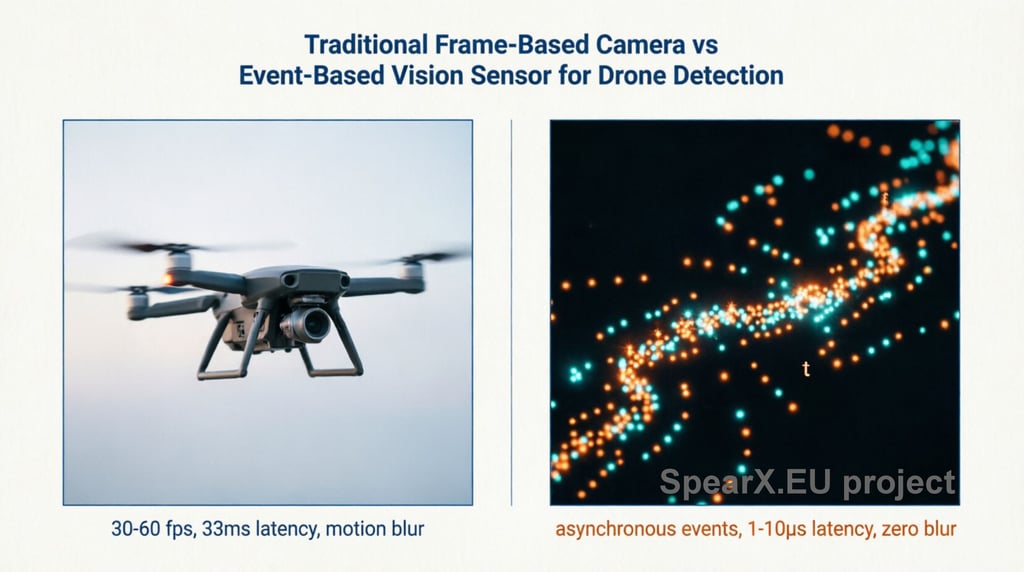

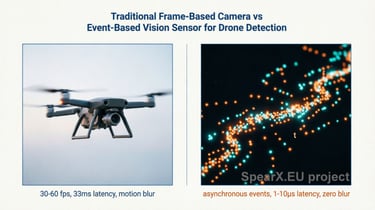

Comparison of traditional frame-based camera vs event-based vision sensor for high-speed drone detection.

Comparison of traditional frame-based camera vs event-based vision sensor for high-speed drone detection.

Traditional image cameras struggle with fast drones in C-UAS applications. Frame-based image sensors (RGB, SWIR, LWIR, MWIR) capture full images at fixed rates (30-90 fps).
This causes motion blur, high latency, and heavy data loads.
Enter event-based vision - a hardware shift for modern CUAS.

Instead of full frames, event-based sensors work at the pixel level.
Each pixel independently reports brightness changes as asynchronous events data: (x, y, timestamp, polarity).

This simple change brings real technical advantages:
Latency drops to 1–10 μs (microseconds)
Dynamic range exceeds 120+ dB (handles direct sun + deep shadows in the same view)
Data bandwidth shrinks by 10-100x vs standard video
Zero motion blur-critical for tracking FPV drones at 60+ m/s

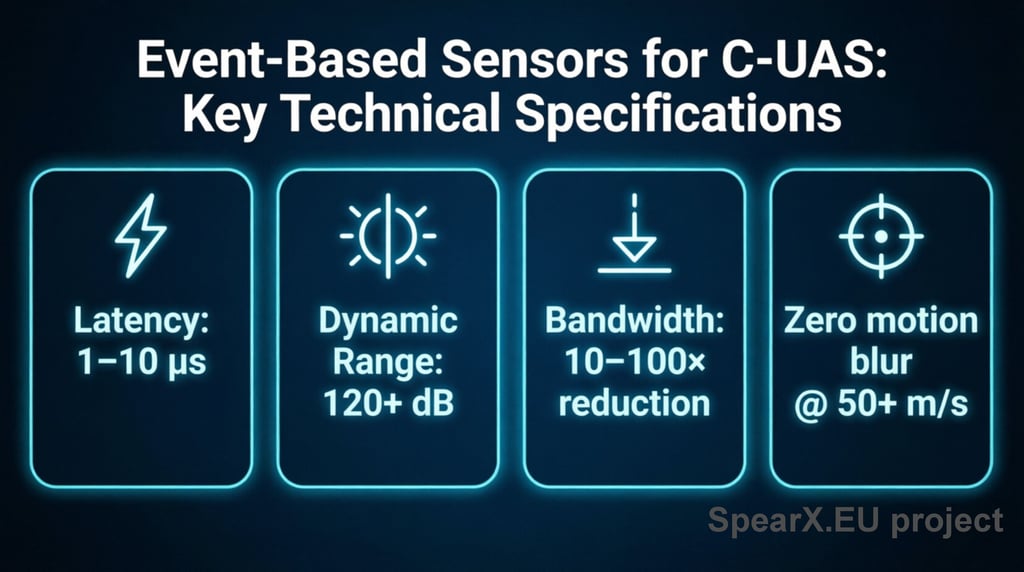

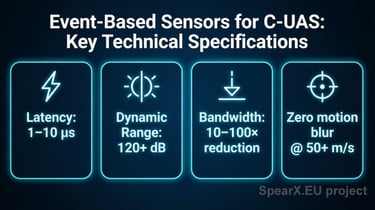

Infographic showing event-based sensor specs for C-UAS including low latency, high dynamic range, and zero motion blur.

Infographic showing event-based sensor specs for C-UAS including low latency, high dynamic range, and zero motion blur.

Why this matters for Counter-UAS:
- Faster detect-to-engage timeline for high-speed threats
- Robust in urban clutter, glare, and rapid lighting changes
- Fully passive - zero RF signature, immune to jamming

But there are real engineering challenges:
🔸 No static texture - event streams only capture motion. Best paired with EO/IR or radar for full situational awareness.

🔸 AI stack is evolving. Traditional CNNs don’t process asynchronous data well. We’re moving toward Spiking Neural Networks (SNNs) and Event Transformers for real-time classification.

🔸 Hardware sync is critical. Microsecond timestamps need PTP/GPIO alignment with radar tracks and C2 systems to avoid fusion delays.

The winning architecture isn’t “replace cameras with events.”
It’s “fuse them.”
Radar gives range & speed. RF gives drone ID.
Event vision delivers microsecond timing for optical tracking.
Together, they cut false alarms and shrink decision latency!

At SpearX, we’re testing event-based sensor modules for our CUAS solution.
