UAV Optical Systems Protection: Engineering Guide
Discover effective engineering strategies to protect UAV optical systems. This comprehensive guide covers hardware, software, and system architecture solutions, focusing on redundancy, anomaly detection, and optical filters to enhance resilience against threats.
4/4/20261 min read
In SpearX: protection isn't a feature - it's Architecture.
Design it from Day One.

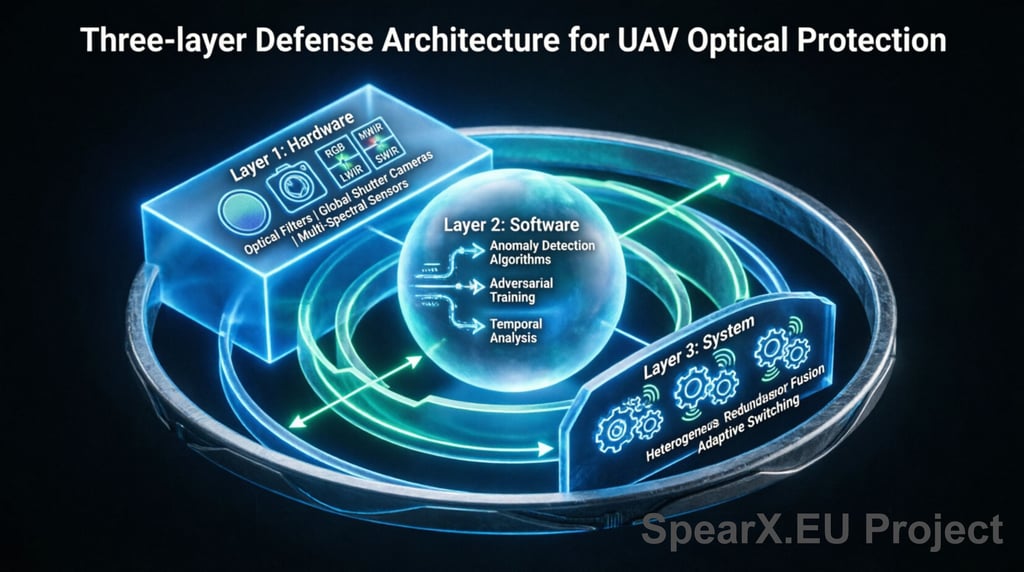

Three levels. No marketing. Just engineering.
LEVEL 1: HARDWARE
Optical Filters:
• Narrow-band per spectrum (RGB, MWIR, LWIR, SWIR)
• Bandpass: 3-5μm MWIR, 8-14μm LWIR
• Polarizing filters reduce glare&laser interference
Camera Selection:
• Global shutter > rolling shutter (resists pulsed jamming)
• HDR sensors with extended DR, auto-gain with saturation protection
Redundancy:
• Overlapping FOV, multi-spectral fusion
Impact: Spectrum filters reduce laser attacks by 70-80%.
LEVEL 2: SOFTWARE
Anomaly Detection:
• Monitor brightness/temperature spikes
• Identify laser artifacts, cross-check channels real-time
Adversarial Training:
• Train AI WITH jamming examples
• Generate synthetic attacks for testing
Time Analysis:
• Real objects have thermal inertia - laser jams are instant
• Kalman filters detect spoofing
Impact: Multi-spectral detectors boost accuracy by 40-60%.

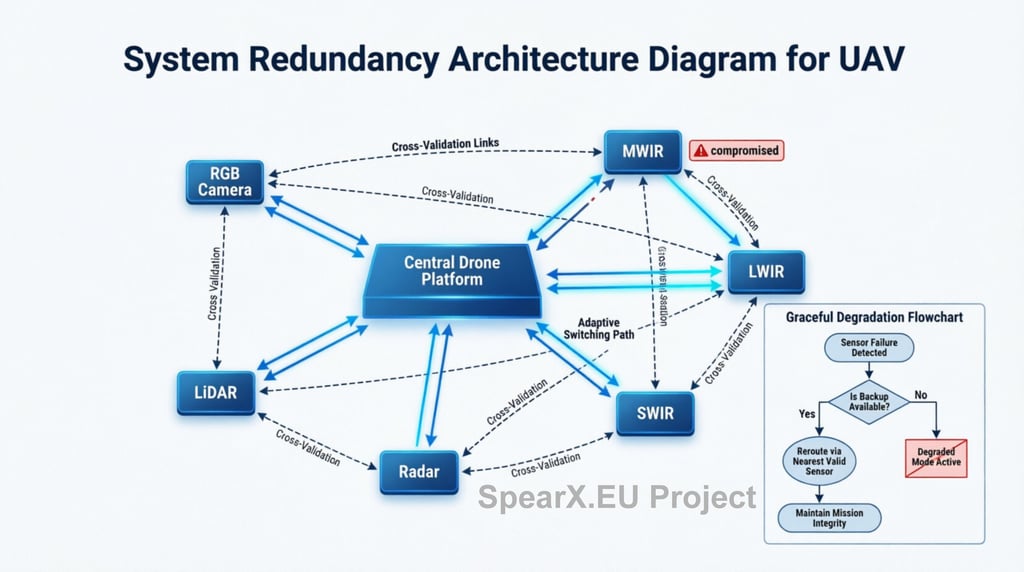

LEVEL 3: SYSTEM ARCHITECTURE
Heterogeneous Redundancy:
• Combine Optics + radar + lidar
• When one channel fails, others work
Context Verification:
• Cross-check thermal data with terrain/GPS/IMU
• AI flags inconsistent multi-sensor readings
Adaptive Switching:
• Auto-switch to backup channels
• Graceful degradation, not total failure
Impact: Quad-redundancy maintains 95% functionality with 2 channels jammed.
LEGAL
EU: Dual-Use Regulation
USA: ITAR/EAR controls
UN: Anti-personnel laser restrictions
Document defensive research. Assess compliance early.
BOTTOM LINE
Protection = raising attacker cost while maintaining capability.
Start with:
Optical filters (quick win)
Anomaly detection (medium effort)
Multi-spectral fusion (long-term)
